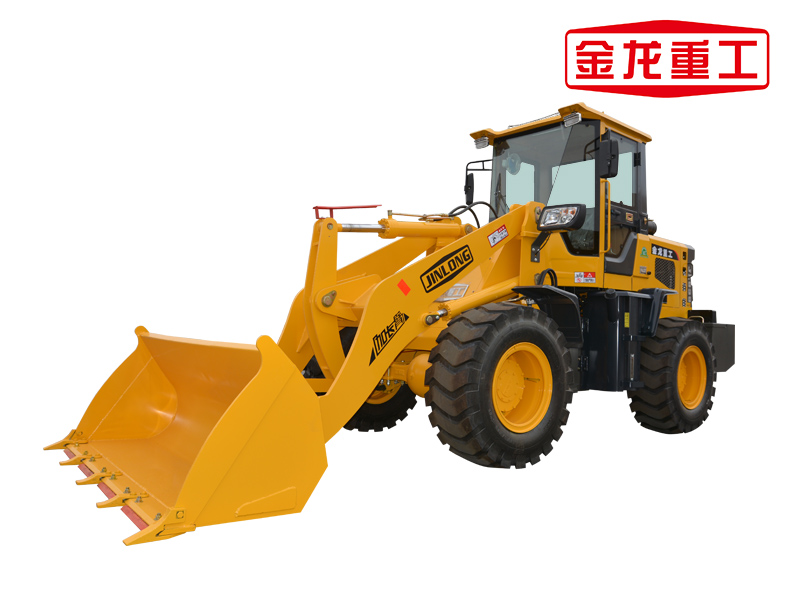

main feature :
1. Large wheelbase, reasonable bridge load distribution, smooth driving operation of the whole machine.
2. Humanized design luxury cab, low noise, full tempered glass, good shock absorption, good heat insulation effect, no blind spots in the line of sight, which can greatly reduce the fatigue strength of the driver.
3. A variety of special buckets can be selected, and the operating tool set and the long arm are super-high unloading to meet the needs of different users.
4. Optimized and computer simulation technology design, high unloading, large breakout force, high efficiency and low fuel consumption.
5. The structural parts such as the front handover, the body beam and other structural parts are all adopted with a plus design, using international materials, sturdy and durable, and improve stability.
6. The four-wheel pneumatic brake of the caliper plate adopts vacuum assist to improve braking performance and safety.
7. Choose brand-name engines, strong power, high efficiency and fuel saving, and meet the needs of users.
| model | 936 extended arm |
| Unloading height (mm) | 3600 |
| engine | 4120 boost (optional) |
| Transmission form | YJ280 Torque Converter |
| Braking form | Double circuit caliper disc air brake |
| Tire specifications | 16/70-24 engineering tires |
| Unloading distance | 1000 |
| Dimensions (length*width*height mm) | 5200*1800*2750 |
| Overall weight | 5000 |
